Stormwater Pipe Repair: Ensuring Raleigh-Durham Compliance

Dragonfly Pond Works’ customized stormwater pipe and riser repair solutions ensure Raleigh-Durham stormwater devices are functioning as designed and compliant with local regulations.

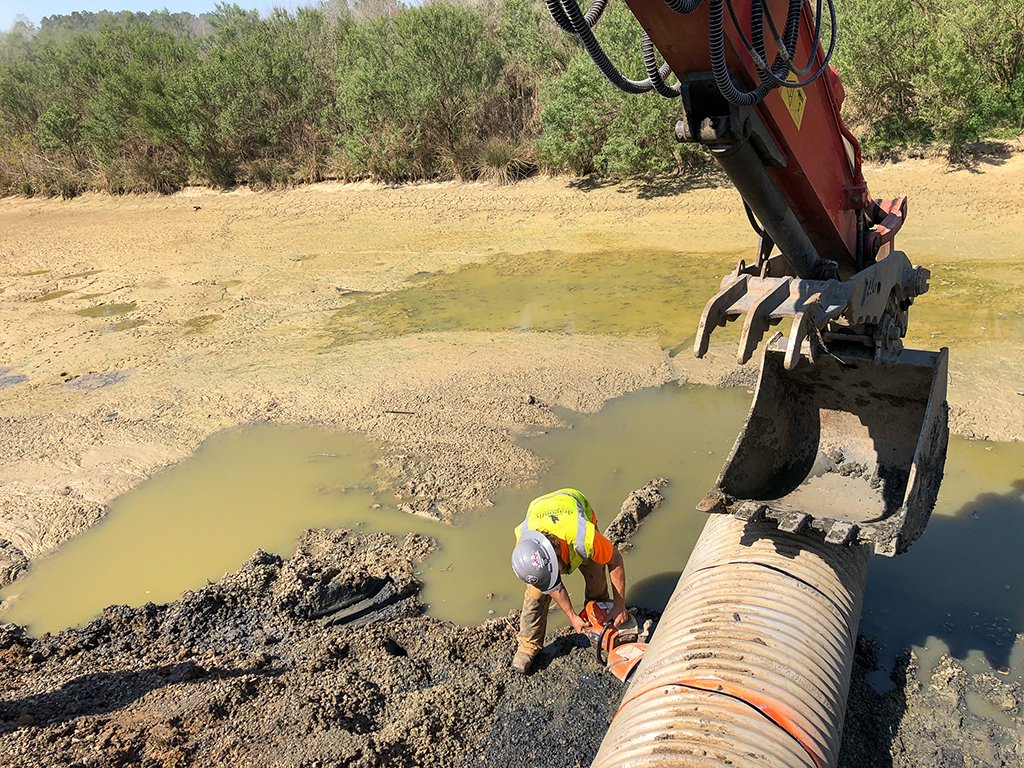

Raleigh-Durham Stormwater pipe repair technician works to remove a failing pipe from a retention pond.

If you're a commercial property manager, facility manager, or community manager in the vibrant Raleigh-Durham area, you're likely familiar with the importance of stormwater compliance to meet environmental regulations. Stormwater devices play a critical role in managing runoff and protecting our environment. By adhering to stormwater regulations, commercial properties can avoid costly fines, prevent property damage, and contribute to the well-being of the local environment and community.

Stormwater Systems: Engineered Devices

Each stormwater device component contributes to the system design function, such as stormwater pipes, outlets, inlets, and risers. Non-compliant or improperly maintained stormwater pipes can lead to major issues, like flooding, sinkholes, and complete system failures. Repairing these engineered devices requires specialized training and expertise. That's where Dragonfly Pond Works comes in—a trusted and specialized stormwater contractor headquartered in Raleigh since 2006.

Expert Raleigh-Durham Repair Solutions with Our Own Crews & Equipment

At Dragonfly Pond Works, we take pride in delivering exceptional stormwater corrective repair solutions tailored to the unique needs of each commercial property. To maintain our high standards of quality and efficiency, our Raleigh-Durham projects are performed in-house by our own experienced crews, utilizing our specialized equipment. This approach allows us to maintain control over every aspect of the project, ensuring timely execution, strict adherence to compliance guidelines, and seamless coordination throughout the process.

Case Study: Restoring Compliance Through Major Stormwater Pipe & Riser Repair

In this article, we highlight a large, multi-faceted project that required an extensive skill-set to complete. The primary focus of the project was a major stormwater pipe and riser repair to replace a failing outlet pipe within the system. The work included mowing and clearing of the pond, excavating, regrading the site to original condition, outlet pipe and riser replacement, inlet and outlet rebuilds, sinkhole repair, and final stabilization. With our experienced stormwater corrective crews, we completed all of this work in-house, safely, and efficiently.

The steps our corrective team took to rectify the multitude of issues in the stormwater device included:

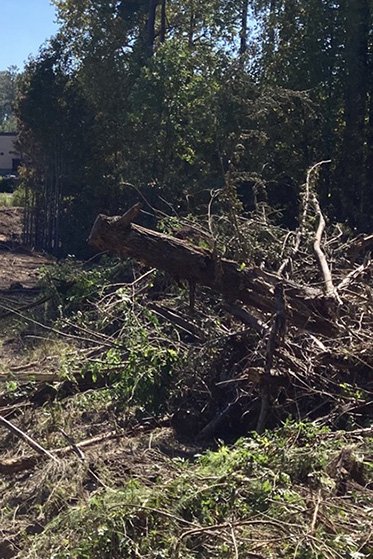

Large trees and vegetation are removed from the dam of a stormwater retention pond

1. Initial Clearing: The first step in the project involved meticulously clearing the site. We mowed the top and side of the dam, removed established trees, brush, and debris

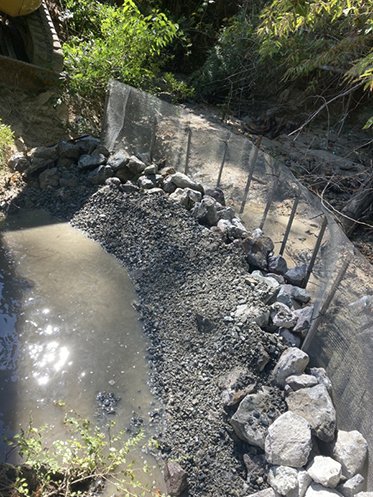

A rock check dam was installed prior to stormwater pipe repairs in a Raleigh-Durham commercial retention pond.

2. Silt Fence Installation: To prevent sediment runoff during construction, we installed silt fences around the site. Additionally, a rock check dam was placed at the outlet to further catch and manage sediment runoff

Three photos of a stormwater pipe repair. 1: Failing riser and pipe in drained retention pond. 2. Installation of new base and riser. 3. Installation of new stormwater pipe and backfill

3. Riser and Pipe Installation: The next critical phase was removing the old pipe and riser. We carefully constructed a solid base for the new riser, ensuring a stable foundation. The new stormwater pipe was set with compactable fill, and the valve and top were securely placed on the riser

Left: Photo of the outlet before installation of a dissipator pad. Right: Photo following dissipator pad installation in the Raleigh retention pond.

4. Outlet Dissipator: We installed an outlet dissipator pad, which was armored with non-woven fabric and riprap. This ensured effective and controlled water discharge, minimizing erosion and preventing further system damage

Left: Photo of a non-compliant inlet. Right: Restored, compliant inlet and dissipator pad.

5. Inlet Dissipator: The inlet dissipator pad was rebuilt and armored using non-woven fabric and riprap to manage incoming water flow and prevent future issues

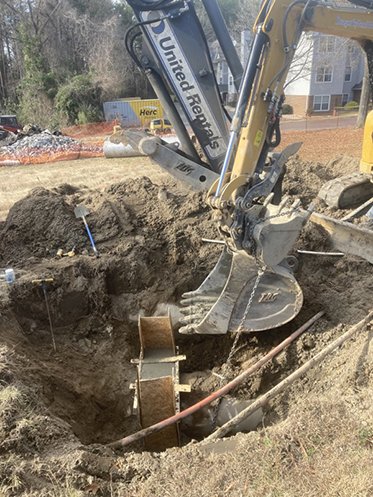

A separated stormwater pipe that caused a sinkhole is repaired by excavator and concrete collar.

6. Inlet Sinkhole Repair: A pipe separation led to a dangerous sinkhole on site which was corrected. We exposed the pipe separation, lifted the sunken pipe, and applied a concrete collar around the joint to ensure stability. We then backfilled and stabilized the work area, ensuring proper soil compaction

Left: Exposed outlet pipe through dam requiring reinforcement. Right: A concrete anti-seep collar is completed around the stormwater pipe.

7. Outlet Anti-Seep Collar: An outlet anti-seep collar was installed near the face of the dam to further enhance the integrity of the stormwater system

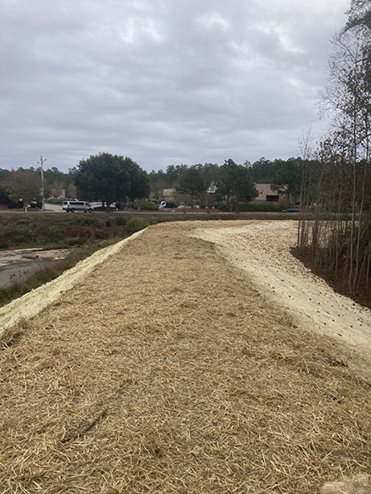

Following the stormwater pipe repair, the final grade is completed and all disturbed areas are stabilized.

8. Final Grading and Stabilization: In the final phase of the project, we meticulously graded the work areas, and applied seed, straw, and matting to promote vegetation growth, stabilize the site, and improve aesthetics

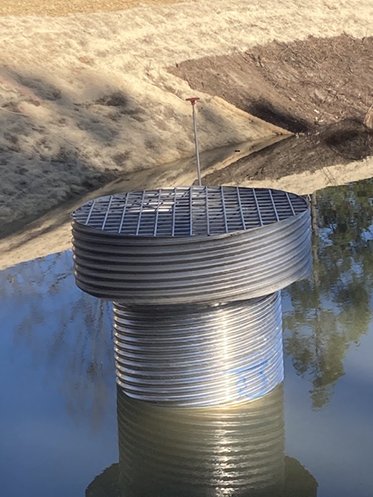

The Raleigh-Durham stormwater pipe repair project is complete, the pipe and visit riser in the retention pond are compliant.

The stormwater system is now compliant and again functioning as designed. Dragonfly’s specialized routine maintenance programs include system component inspection with every visit. This allows us to ensure the system continues to function as designed and alerts us, and owners, to any potential issues before they worsen and repairs become more costly.


Dragonfly Pond Works: Your Trusted Raleigh-Durham Stormwater Management Partner

Complying with stormwater regulations is a vital responsibility for commercial property managers, and the expertise of a specialized stormwater contractor like Dragonfly Pond Works can make all the difference. Our trained professionals possess in-depth expertise, ensuring that every project is executed flawlessly, efficiently, and meets compliance standards. Together, we can protect our environment while ensuring the longevity and success of your Raleigh-Durham commercial facility. Contact us today to discuss how we can best serve you and your specific stormwater management needs.


Stormwater Pipe Repairs, Riser Repairs, Reconstructions, & More

Learn about our additional stormwater corrective repair and reconstruction capabilities. We complete some of Raleigh-Durham’s largest stormwater construction projects, including this conversion of a sediment catch basin to finalized, certified SCM.
